Adjustable Post Support

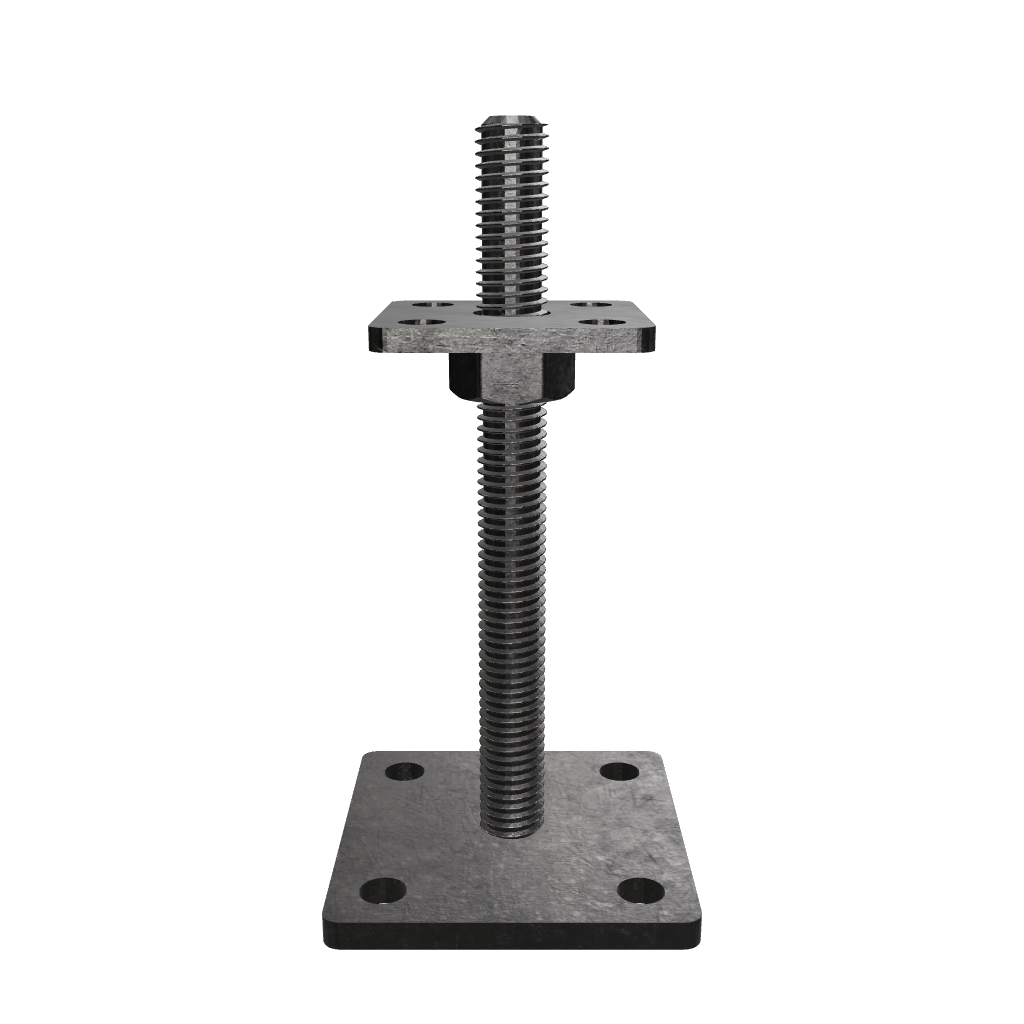

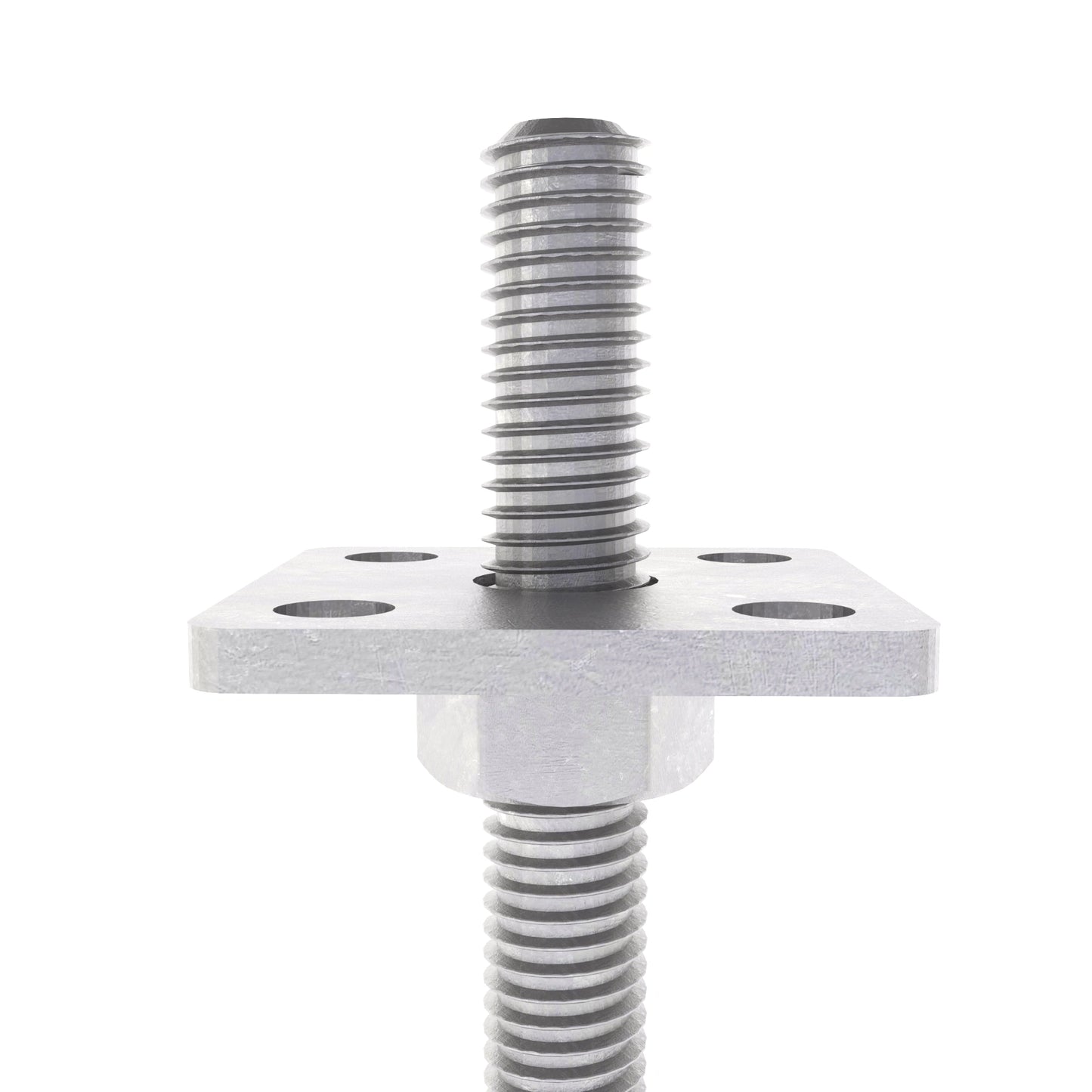

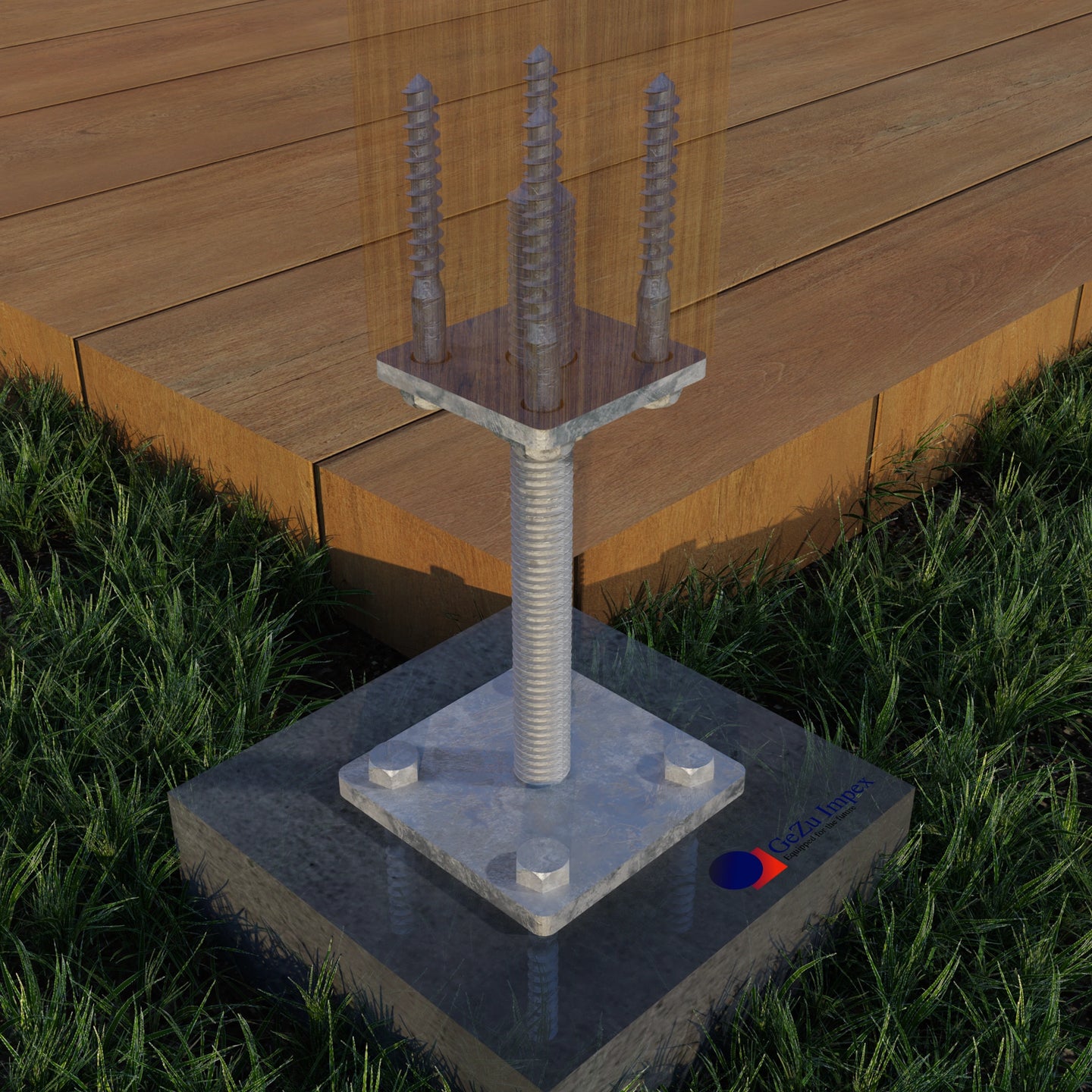

PRODUCT - Adjustable Bolt Down Post Support is very practical and is used in many garden and timber construction projects. The hexagon nut is welded to the support plate, and the welded joint is used to fix the plate in place.

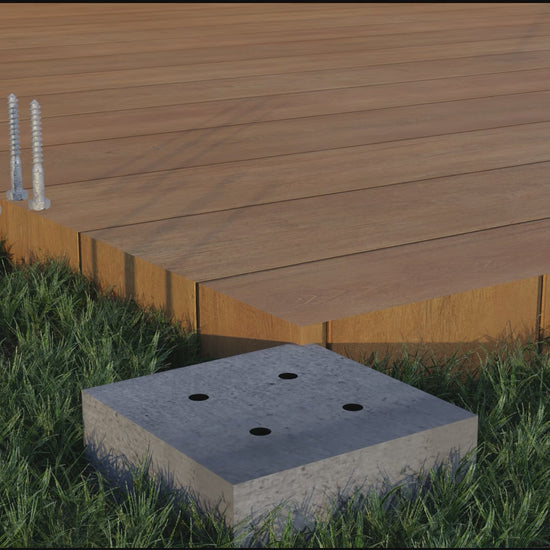

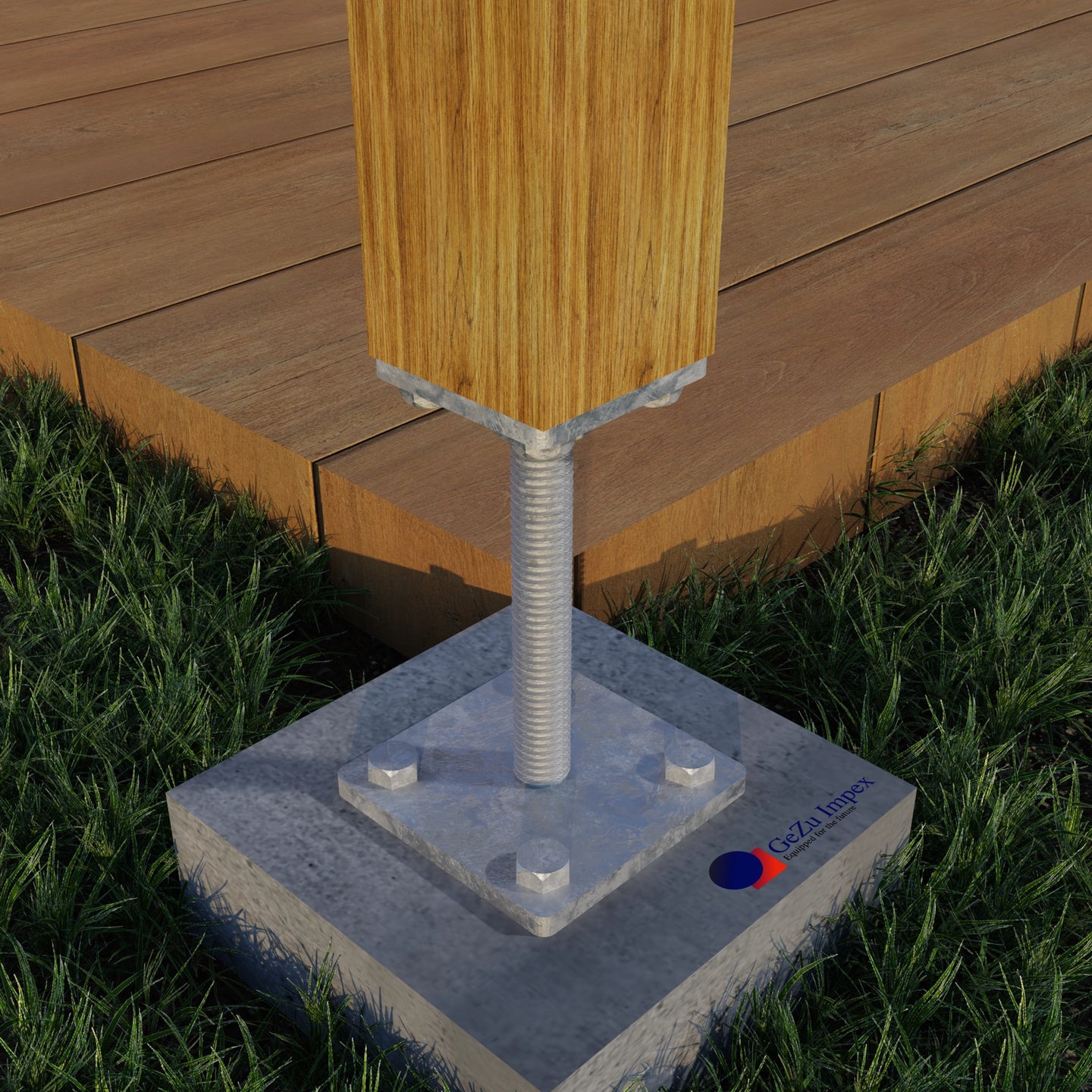

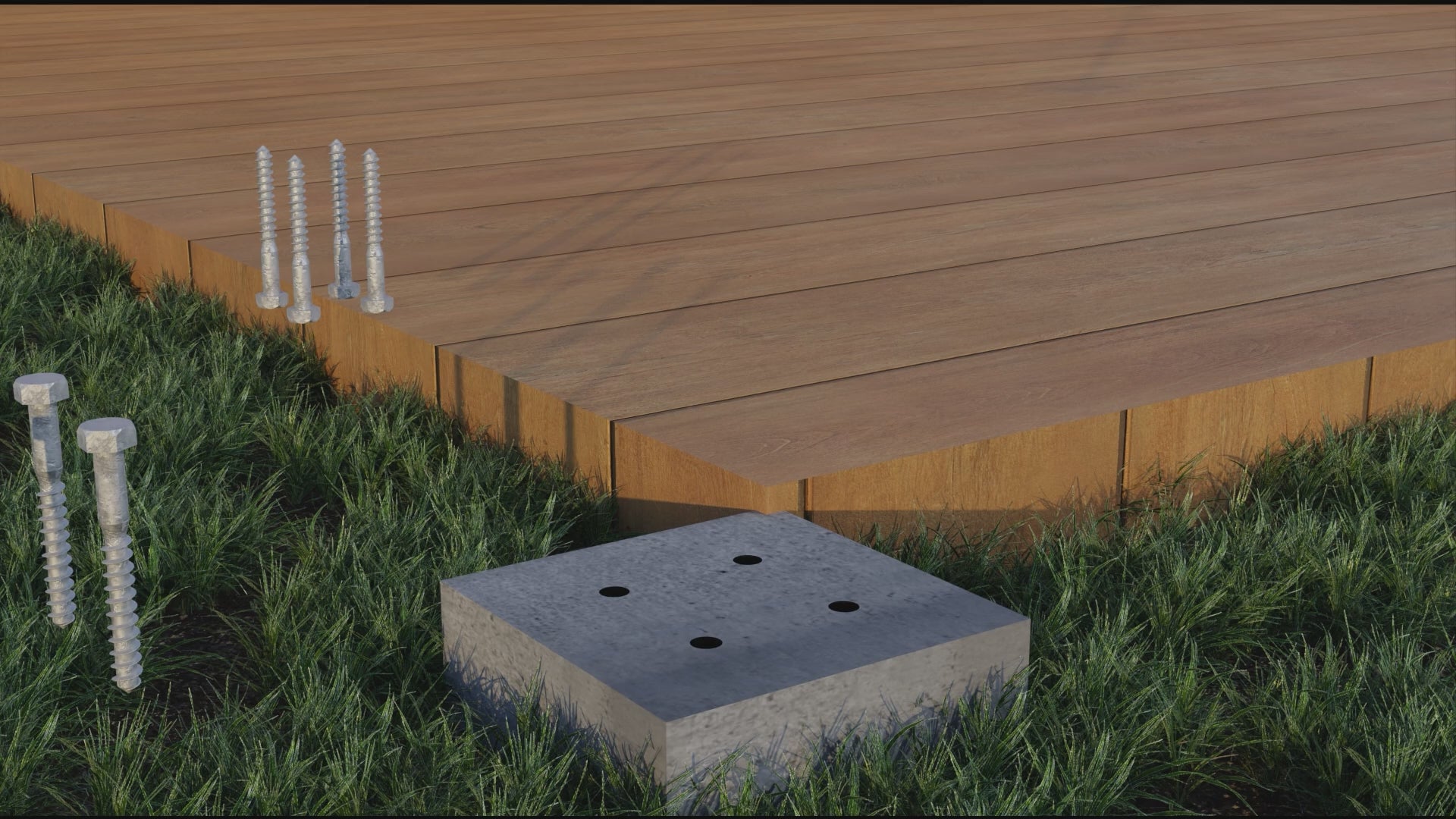

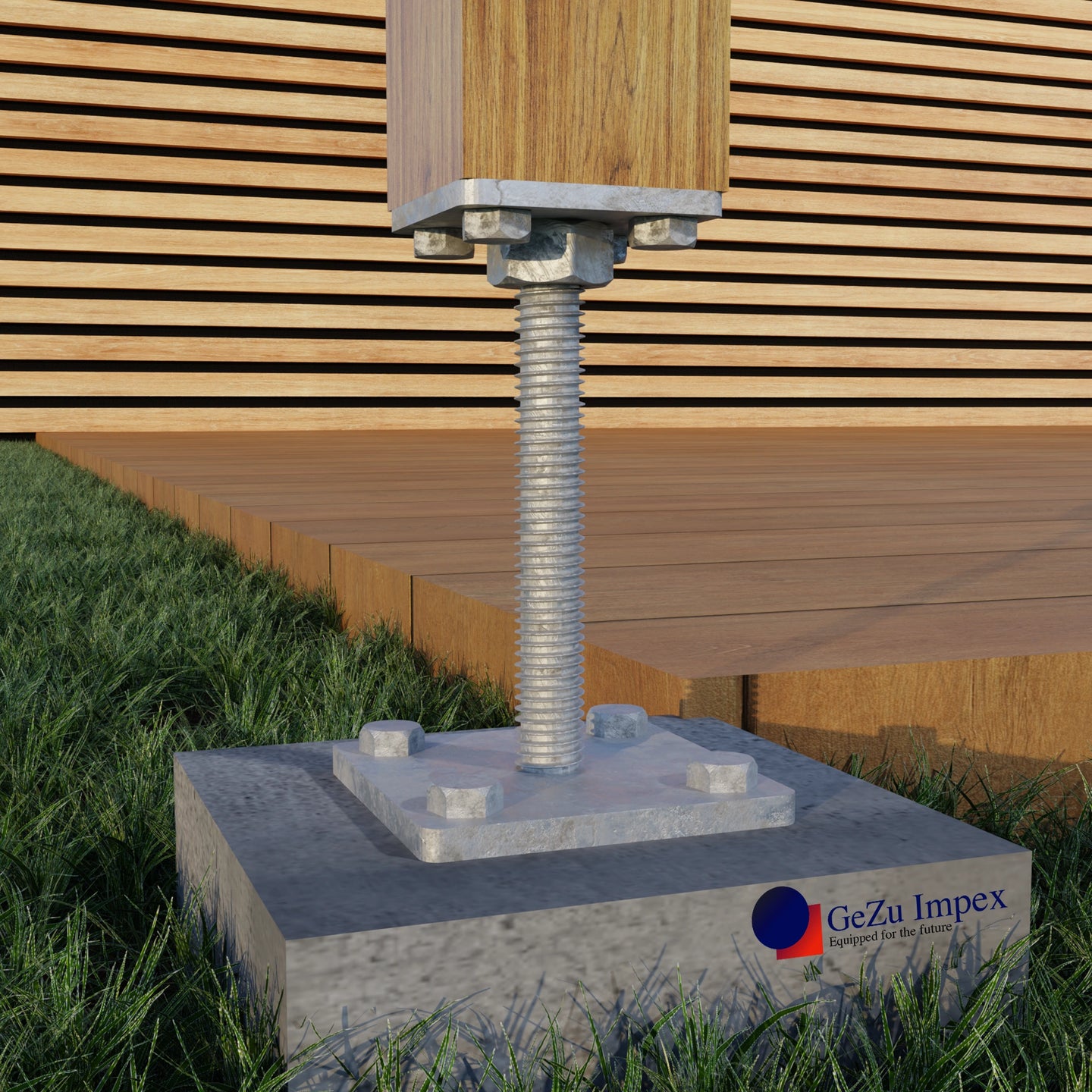

FEATURES - The adjustable post Support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors.

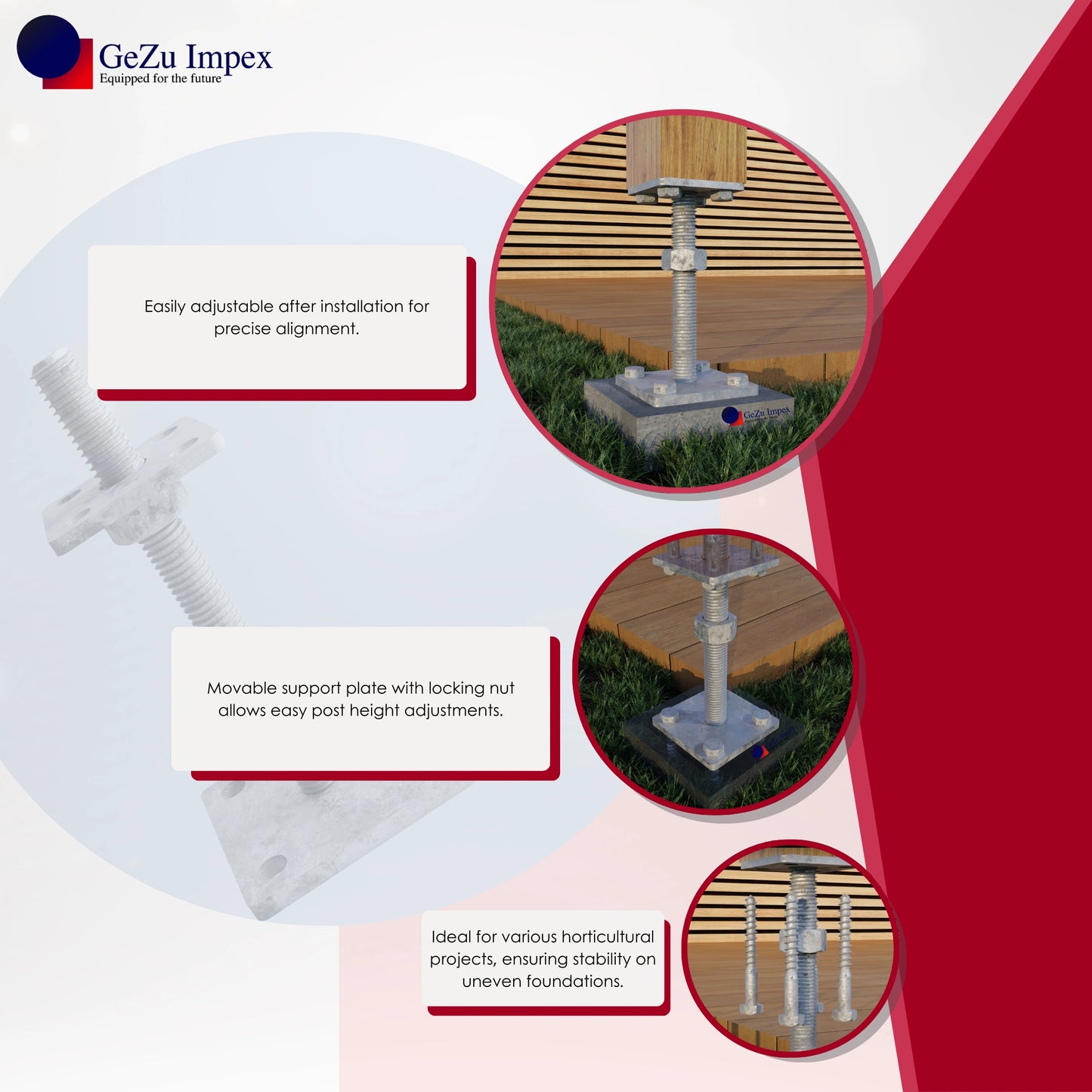

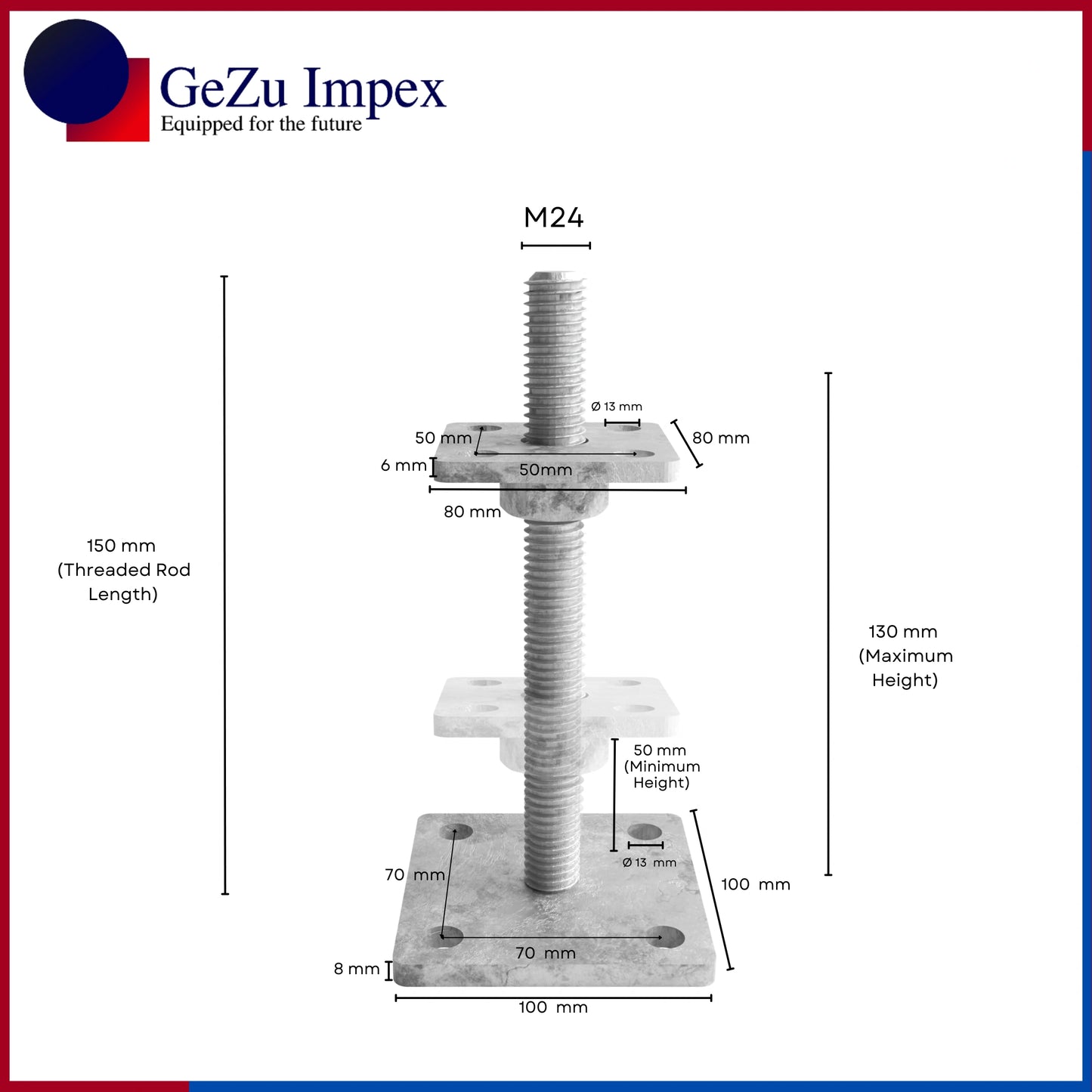

USABILITY - If the foundation does not have the same height everywhere, the post support can be adjusted in a range of 50 - 130 mm before final installation. The 150 mm long threaded rod enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when the height is adjusted.

VERSATILITY - For stability reasons, approx. 10 - 20 mm of the adjustment range is required as thread security. Thanks to the hot-dip galvanisation, the Adjustable Elevated Post Base Support is optimally protected against external weather influences. The base plate measures 100 × 100 mm and the support plate measures 80 × 80 mm.

TECHNICAL DATA - Adjustment range: 30 - 80 mm - Support plate: 50 x 50 mm - Material thickness of support plate: 6 mm - Holes in support plate: 4 holes Ø 8 mm - Hole spacing of support plate: 35 mm - Base plate: 70 x 70 mm - Material thickness of base plate: 8 mm - Holes in base plate: 4 holes Ø 13 mm - Hole spacing of base plate: 45 mm - Ø mandrel/thread: 16 mm - Hexagon nut: SW 24 - Material type: Steel zinc flake coated
